SimuRail - Mobile Simulator


SimuRail has become mobile and transportable!

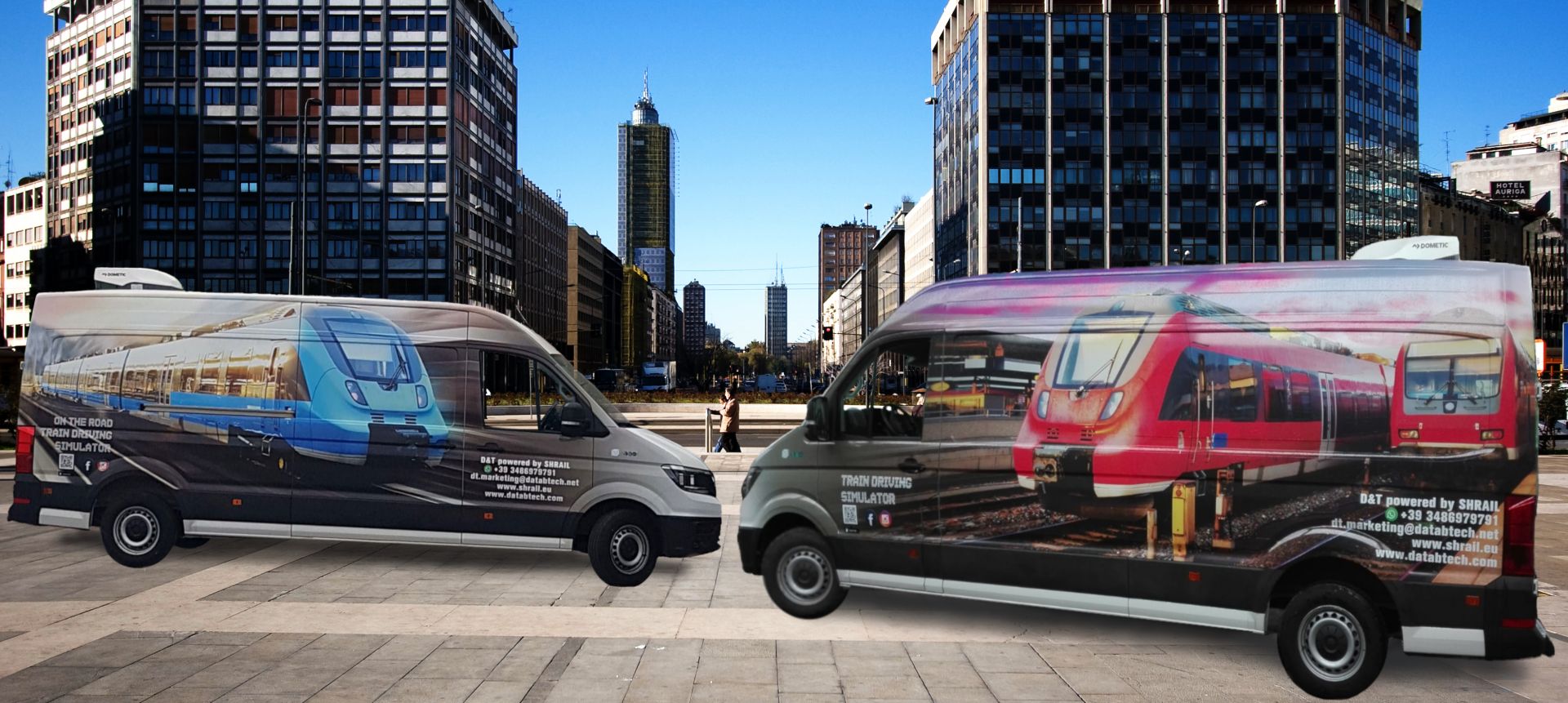

SimuRail - Mobile Simulator is the mobile solution of the SimuRail product. It is a real classroom set up in our van with the E464 simulator. It comes ready to be used in the vehicle or, if necessary, the simulator can be downloaded and positioned in a physical classroom.

It is ideal for companies that need to provide training using a professional behavior simulator, but for whatever reason, such as budget or space, do not have their own. The E464 simulator can therefore be used in the location of interest for the necessary time, directly in the vehicle or in the classroom, allowing for complete training or the maintenance of skills.

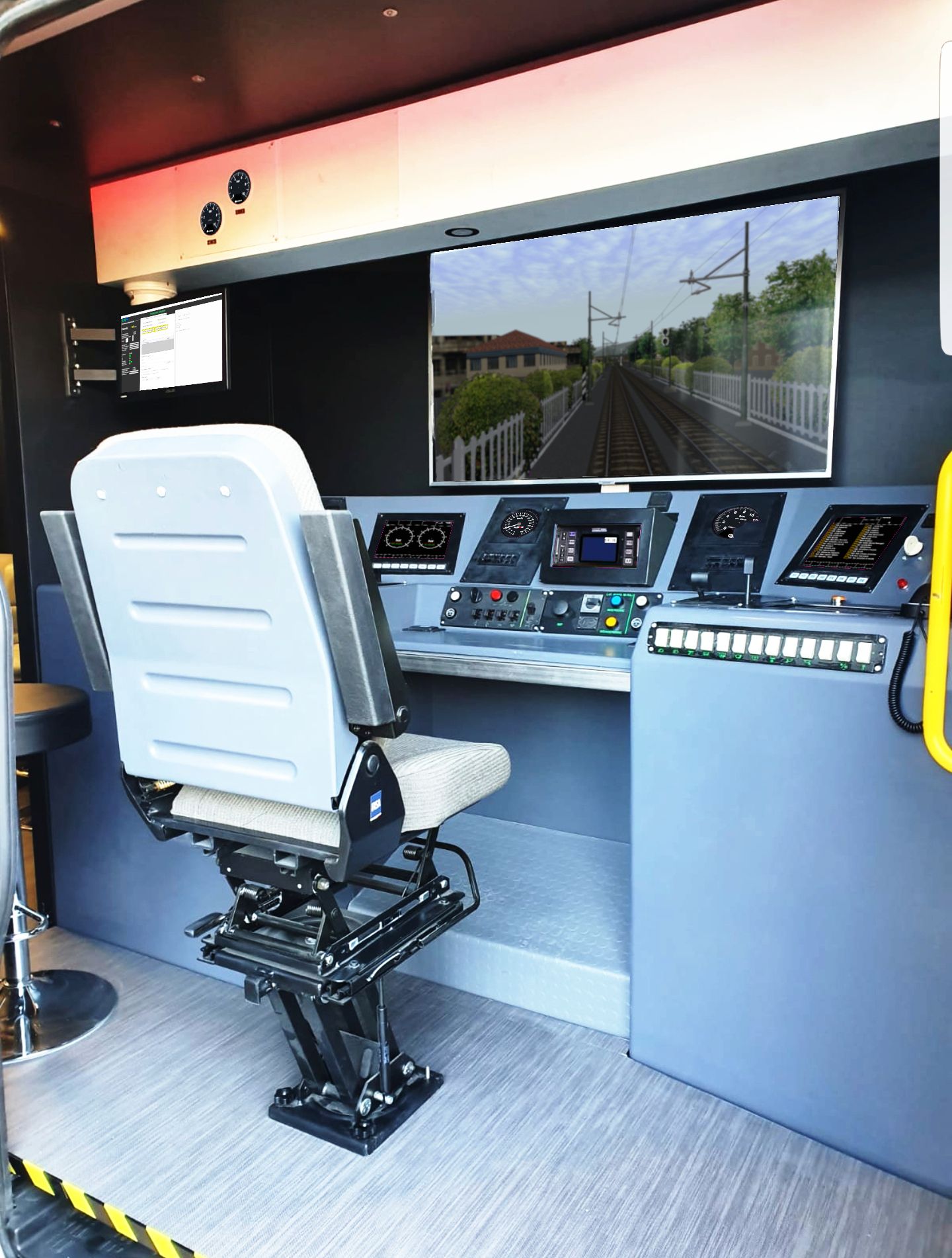

The E464 simulator is based on our well-known SimuRail simulation engine, complete with a unified FS93-type physical bench, the same present on various vehicles.

The mobile classroom is also composed of an area dedicated to observers, with a panel with three monitors. Through these, it is possible to see the scenario in progress, the view of the desk with the behavior of the learner/CA and, optionally, the tools that you want to share.

The instructor uses a console via a dedicated touch monitor with an adjustable arm or a tablet.
The interior of the vehicle offers a comfortable environment that can be used in all seasons, equipped with hot/cold air conditioning and a lighting system with adjustable RGB LEDs.

The simulation is guaranteed to be fully immersive even when the E464 simulator is placed in the classroom, thanks to the environment created inside the modular structure.

Main features of the Simulator



  1. Realistic instrument panel type FS93

  2. Faithful reproduction of the panel logic
  3. Option of configuring the number of carriages
  4. SCMT and RSC systems with more than four codes
  5. Physical control of the simulation (e.g., with weight, wheel-rail friction, acceleration and braking performance)
  6. Management of weather events, conditions of visibility, friction and time of day
  7. Setting for entities on the line (e.g., signals, buoys, RSC codes, level crossings, points)
  8. Option of activating or deactivating faults and anomalies in the engine and signaling system
  9. The simulated scenarios reflect the railway dossiers and relative station plans, the tables for curves and plano-altimetric profiles (data taken from official documents and GPS)
  10. Control and report of the simulation session via the Instructor's Console and camera integrated in the simulator

The highly modular nature of the simulator also allows you to extend the simulation by implementing other devices on board, in line with the customer's needs.

Technical Data


  • Size of the mobile classroom with simulator: Length: 6,83 Width: 2,04 Height: 2,59
  • Size of simulator: 216,6cm (width) x 172,3cm (depth) x 214,9cm (height).
  • Mounted weight: 540 kg approx.
  • Operating voltage: 230V AC single phase.
  • Maximum consumption: 1 kW.
